Carbon Plate

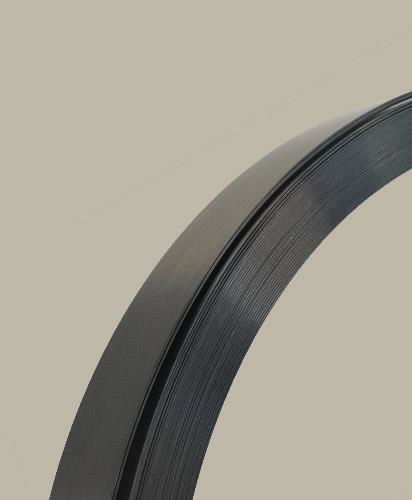

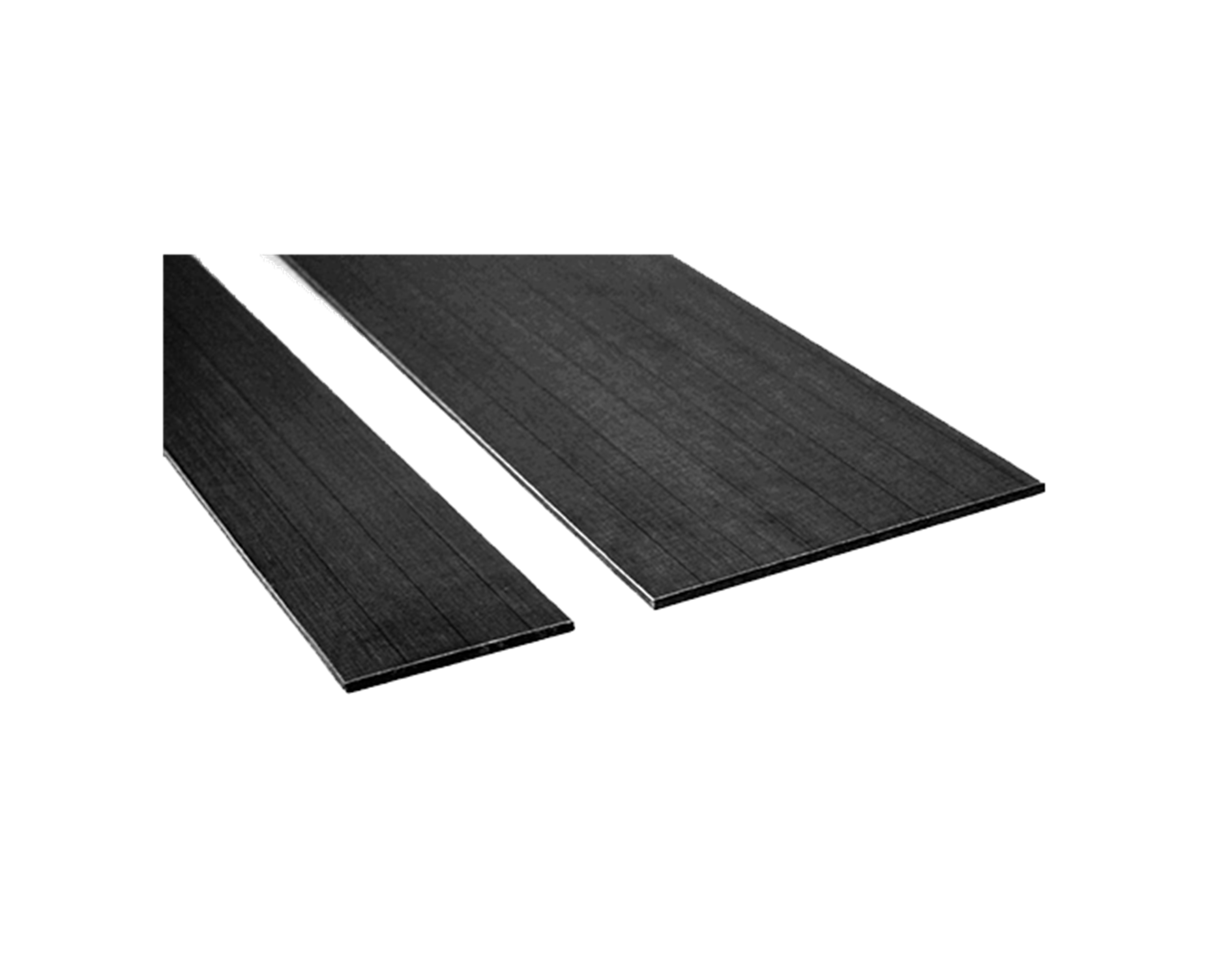

Carbonfib Carbon Plate is an extremely strong reinforcement material which designed for structural reinforcement applications. A wide range of carbon plates  in different thickness, widths are available for strengthening applications.

  • A wide range of options for all structural applications.
  • High tensile strength.
  • High ductility.
  • High durability properties.
  • Thanks to its natural structure, it is long-lasting.
  • It greatly improves the seismic performance and load bearing capacitiy of the structural elements.
  • It has been specially developed for reinforcement applications and is manufactured from high quality carbon fibers.
Product Thickness (mm) Width(mm)  Lenght (m)
CP1.2 1.2  50-100 100
CP1.4 1.4 50-100 100
CP4.9 4.9  50-100 100



Carbonfib Carbon Plate is chemical and corrosion resistant, compatible with different materials and standard adhesive resins.

  • Short construction period
  • No maintenance required
  • Minimal change to structure’s shape, weight, or appearance
  • Improving service life and durability
  • Thermal compatibility
  • Excellent fatigue behavior
  • Repairing or preventing seismic damage
  • Replacing damaged or missing reinforcing steel
  • Extremely durable
  • Extremely resistant to a wide range of environmental conditions
  • Easy installation

Carbonfib Carbon Plate is used to increase the fatigue resistance of the structure.

  • Columns strengthening
  • Beams strengthening
  • Slabs strengthening
  • Walls strengthening



Avg. Tensile Strength (GPa)  2.4
Elongation at Break (%) 1.5
Avg. Tensile Modulus (GPa) 160
Roll length (m) 100
