UD Carbon Fabrics

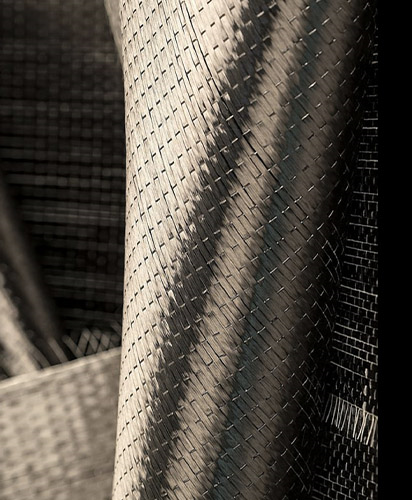

Carbonfib Uni-directional Carbon Fabric is an extremely strong reinforcement material which designed for structural reinforcement applications. A wide range of unidirectional carbon fabrics in different weights are available for strenghtining applications.

  • One- or two-way carbon fibers.
  • High tensile strength.
  • High ductility.
  • High durability properties.
  • It is suitable for traditional FRP security applications.
  • Used with Carbonfib FRP epoxy structure.
  • Thanks to its natural structure, it is long-lasting.
  • With epoxy coating, the coating has no coating.
  • The load bearing extensions are increased by wrapping the structural unit, which acts as an additional donation.
  • It greatly improves the seismic performance of the structure.
  • Different weight options.
  • It has been specially developed for reinforcement applications and is manufactured from high quality carbon fibers.



Product Unit Weight (g/m2) Strength (MPa)
UD200 200 4200
UD300 300 4200
UD600 600 4200

* Listed items are standart products. The uni-directional carbon fabrics can be procuded between 100-1200 g/m2

Carbonfib Carbon Fabric is chemical and corrosion resistant, compatible with different materials and standard adhesive resins.  It is easy for installation with minimal disruption and noise during preparation.

  • Short construction period
  • No maintenance required
  • Minimal change to structure’s shape, weight, or appearance
  • Improving service life and durability
  • Thermal compatibility
  • Excellent fatigue behavior
  • Repairing or preventing seismic damage
  • Replacing damaged or missing reinforcing steel
  • Extremely durable
  • Extremely resistant to a wide range of environmental conditions
  • Easy installation

Carbonfib Carbon Fabric is used to increase the fatigue resistance of the structure.

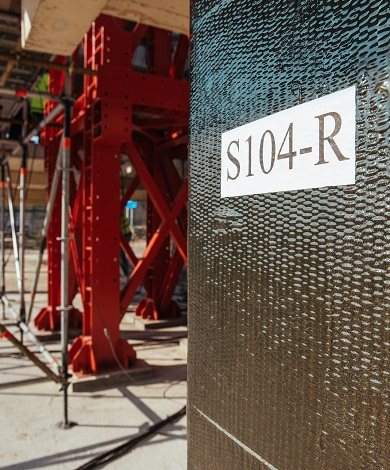

  • Columns strengthening
  • Beams strengthening
  • Slabs strengthening
  • Walls strengthening
  • Pipes strengthening
Product Range ( g/m2) 100 – 1200
Avg. Tensile Strength (GPa)  4.2
Elongation at Break (%) 1.8
Avg. Tensile Modulus (GPa) 240
Density (g/cm3) 1.78
Roll length (m) 50-100
